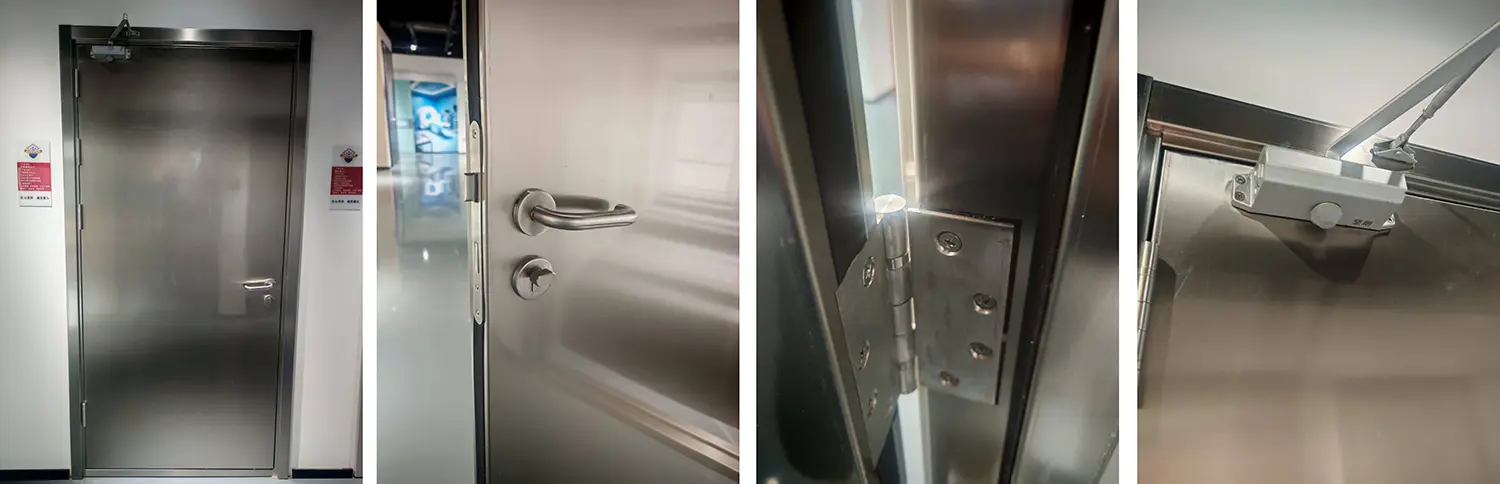

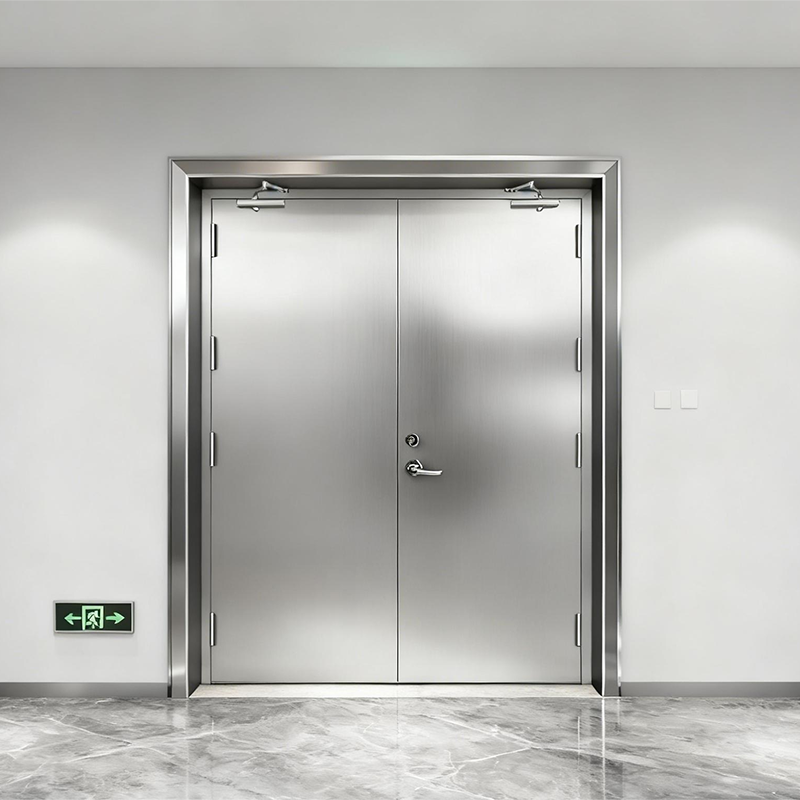

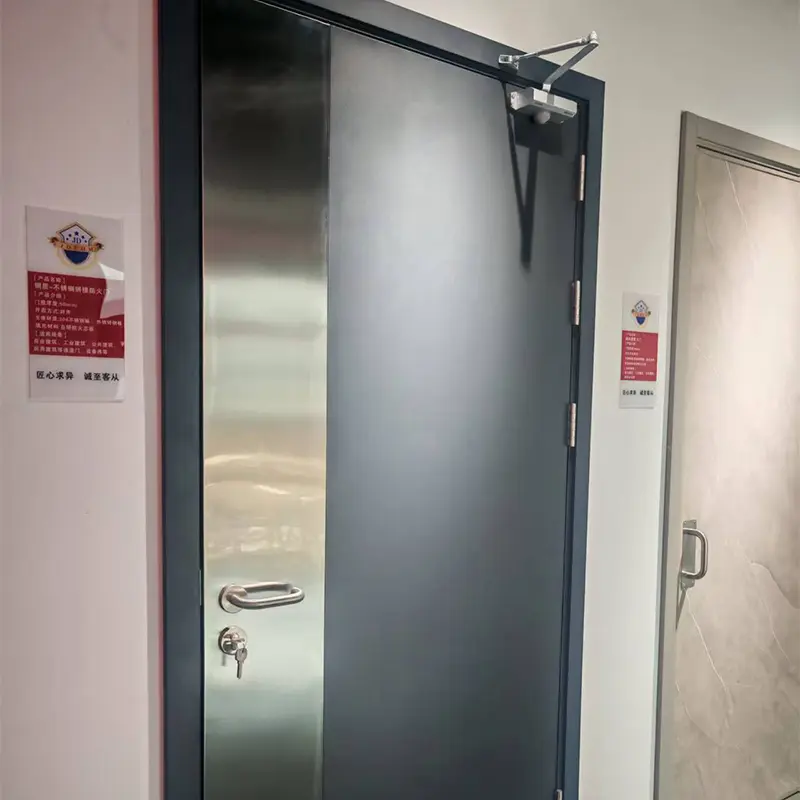

Stainless Steel Fire-Rated Doors
Product Features
Fire Resistance Performance
The fire-resistant material independently developed by our company filled inside the door leaf, combined with the fire-resistant intumescent sealing strip between the door frame and the door leaf, can prevent flame penetration within the specified fire resistance time, ensuring that the heat insulation performance of the stainless steel fire-resistant door meets the temperature requirements of all levels.
Smoke Sealing
The gap between the door and frame is precisely controlled within 1–3 mm, and combined with a door closer, ensures the door remains securely closed. The fire-resistant intumescent seals maintain elasticity under normal conditions and expand tightly at high temperatures, effectively preventing the spread of toxic smoke through stainless steel fire-rated doors.
Durability & Strength
Constructed from high-grade 304 stainless steel, both the frame and door leaf offer superior corrosion and wear resistance, standing up to humidity, heat, and harsh environments. The reinforced door structure provides excellent impact resistance and long-term stability — resisting deformation or cracking without frequent maintenance — ensuring durability and safety over years of use.
Aesthetic Appearance
Aesthetically, the surface retains the metal's natural texture while allowing for custom finishes such as antique bronze or black coating, breaking the monotony of traditional stainless steel tones and complementing or contrasting with the surrounding architectural palette.
Installation & Maintenance
During installation, the frame is assembled on-site and secured with expansion bolts, with the wall gaps filled using cement mortar for solid anchoring. Ensure a uniform clearance (approx. 3 mm) between the door and frame, and verify the door closer and fire-rated lock function properly after assembly. For routine maintenance, clean the surface using a soft cloth and neutral detergent; avoid steel wool or acidic/alkaline cleaners that might scratch or corrode the surface. Regularly inspect the hardware operation and sealing strips, and replace damaged components as needed to extend the service life of the stainless steel fire door.
Fire Rating
Grade C
Fire integrity ≥ 30 minutes, fire insulation ≥ 30 minutes;
Suitable for secondary fire protection areas such as pipe shafts and cable shafts, mainly used to block the spread of small fires.
Grade B
Fire integrity ≥ 60 minutes, fire insulation ≥ 60 minutes;
Suitable for areas with moderate fire protection requirements such as stairwells, antechambers, and evacuation routes.
Grade A
Fire integrity ≥ 90 minutes, fire insulation ≥ 90 minutes;
Suitable for important areas such as fire control rooms, power distribution rooms, rooms with valuable equipment, and fan rooms.
Others
Fire integrity ≥ 120-180 minutes, fire insulation ≥ 120-180 minutes;
Suitable for areas with ultra-Class A fire protection requirements such as chemical workshops, tunnel escape exits, and arms and ammunition depots.
Application Areas
Industrial Facilities
Public Institutions (Hospitals / Schools)
Commercial Buildings (Offices / Hotels / Residences)
Transportation Hubs (Airports / Rail Stations)
Military and Security Facilities
| Door Frame | 1.2mm ~ 2.0mm 304 Stainless Steel | |
| Interlocking Formed Structure | ||
| Door Leaf | 0.8mm ~ 1.5mm 304 Stainless Steel | |
| Door leaf thickness: 50mm | ||
| Door Leaf Core Material | Magnesium sulfate is used as the filling material for fire doors, and its core advantages are ingeniously embodied in its strong fire and flame-retardant protection, efficient heat insulation for temperature resistance, long-lasting and stable structural performance, as well as green and environmentally friendly safety characteristics | |
| Reinforcement Structure | Thickness ≥ 3.0mm | |
| Product Size & Dimensions | Standard Size for Single Leaf Door: (Width ≤ 1100mm) * (Height ≤ 2400mm) Standard Size for Double Leaf Door: (Width ≤ 1100mm) * (Height ≤ 2400mm) Custom Door Maximum Size: (Width ≤ 4600mm) * (Height ≤ 5000mm) |
|
| Observation Window | Nano-silicon Fire Rated Glass: 25~35mm, composed of multiple original glass sheets combined with multiple layers of highly transparent and hard nano-silicon fire-resistant liquid interlayers | |
| Surface Treatment | Brushed Finish：Achieved through mechanical polishing to create fine, parallel grain lines. The texture offers a refined touch, reduces glare, and delivers a subtle, industrial aesthetic. | |
Plating Finish：Options such as copper plating or black coating alter the surface tone, adding a vintage or customized look while enhancing corrosion resistance and durability.
|
||

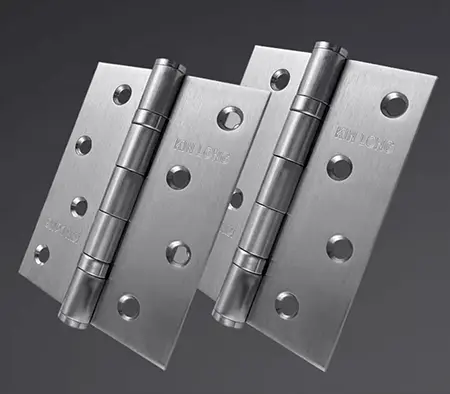

| Hardware Components | 304 Brushed Stainless Steel Hinge: Exposed bearing-type hinges with a load capacity of ≥80 kg per hinge |  |

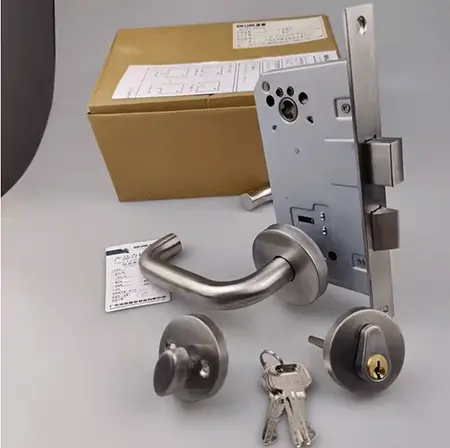

| 304 Brushed Stainless Steel Fire-Resistant Lock: Lever-handle design with fire resistance up to 90 minutes |  |
|

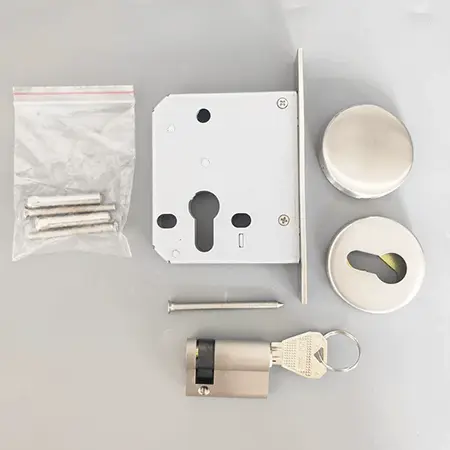

| 304 Brushed Stainless Steel Shaft Lock: Flush-mounted design with an anti-pry structure |  |
|
| 304 Brushed Stainless Steel Panic Bar Lock: Horizontal push-rod design allowing quick evacuation in emergency situations. |  |
|

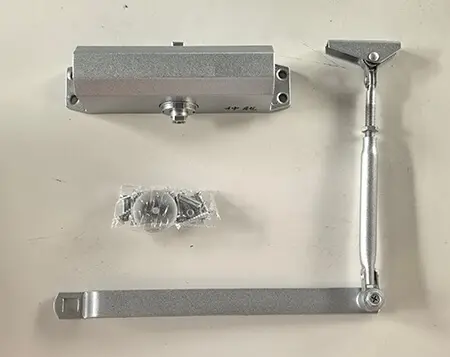

| Door Closer: Hydraulic type with adjustable closing time (3–8 seconds), ensuring the door closes securely and safely. |  |
|

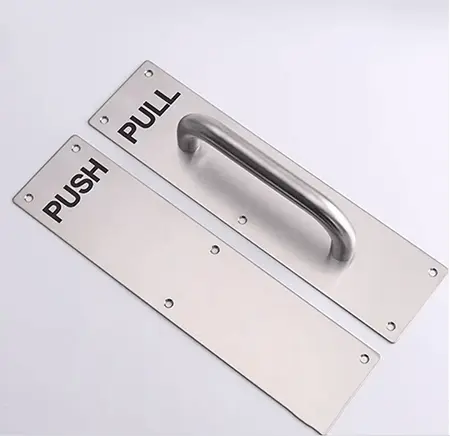

| 304 Brushed Stainless Steel Push-Pull Plate: Dimensions 300*100*3 (unit: mm, default for hardware), ergonomic grip, compatible with multiple door types |  |
|

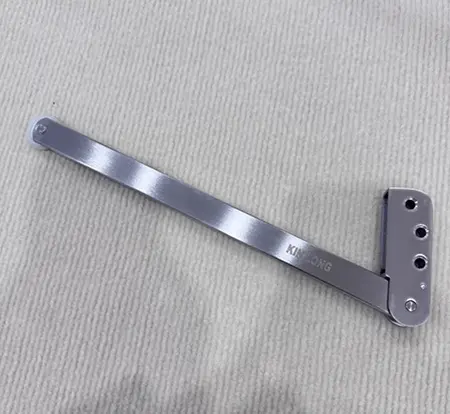

| 304 Brushed Stainless Steel Sequencer: Synchronizes double-leaf doors, ensuring the inactive leaf closes before the active leaf, with a response time ≤0.3 seconds, preventing impact and ensuring proper sealing. |  |
|

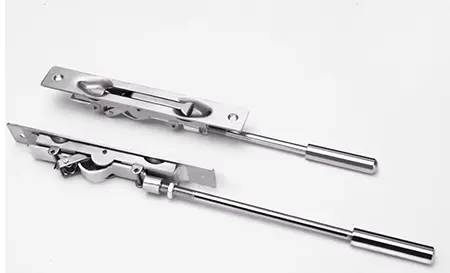

| 304 Brushed Stainless Steel Bolt: Provides a locking force ≥300 N, reinforcing the door leaf fixation and improving overall structural integrity. | |

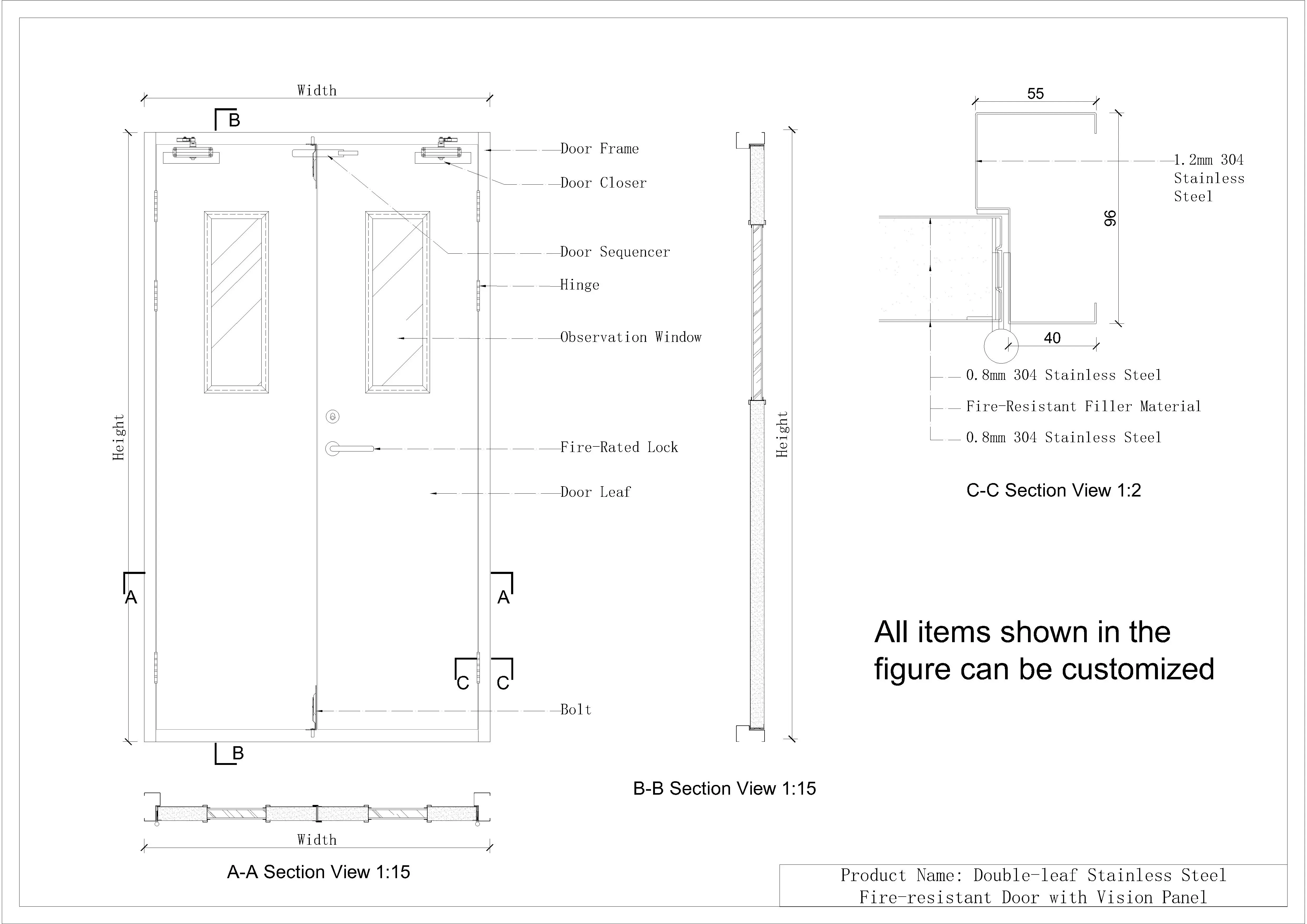

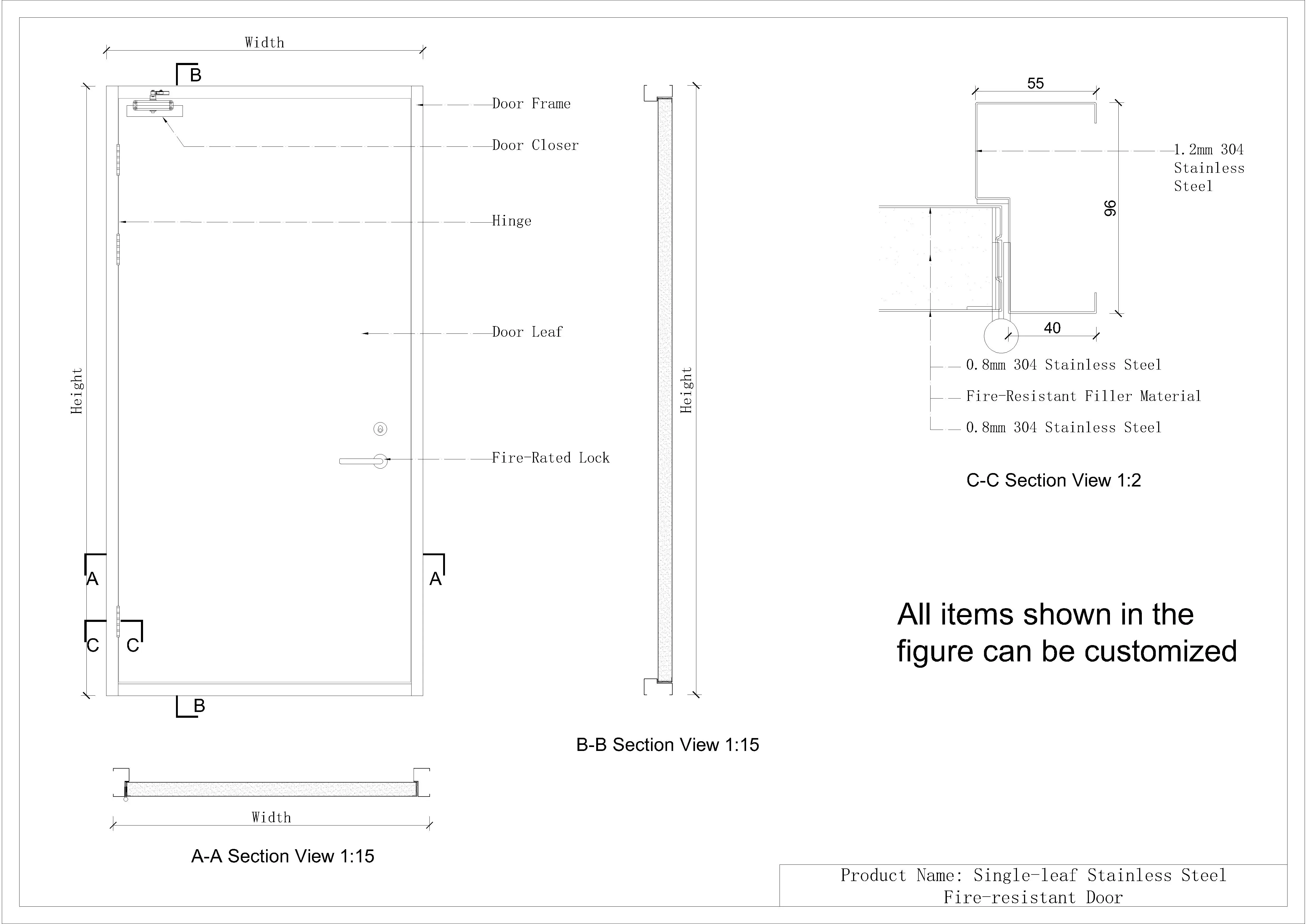

| Door Frame | 1.2mm 304 Stainless Steel |
| Interlocking Formed Structure | |
| Door Leaf | 0.8mm 304 Stainless Steel |
| Thickness of Door Leaf: 50mm | |

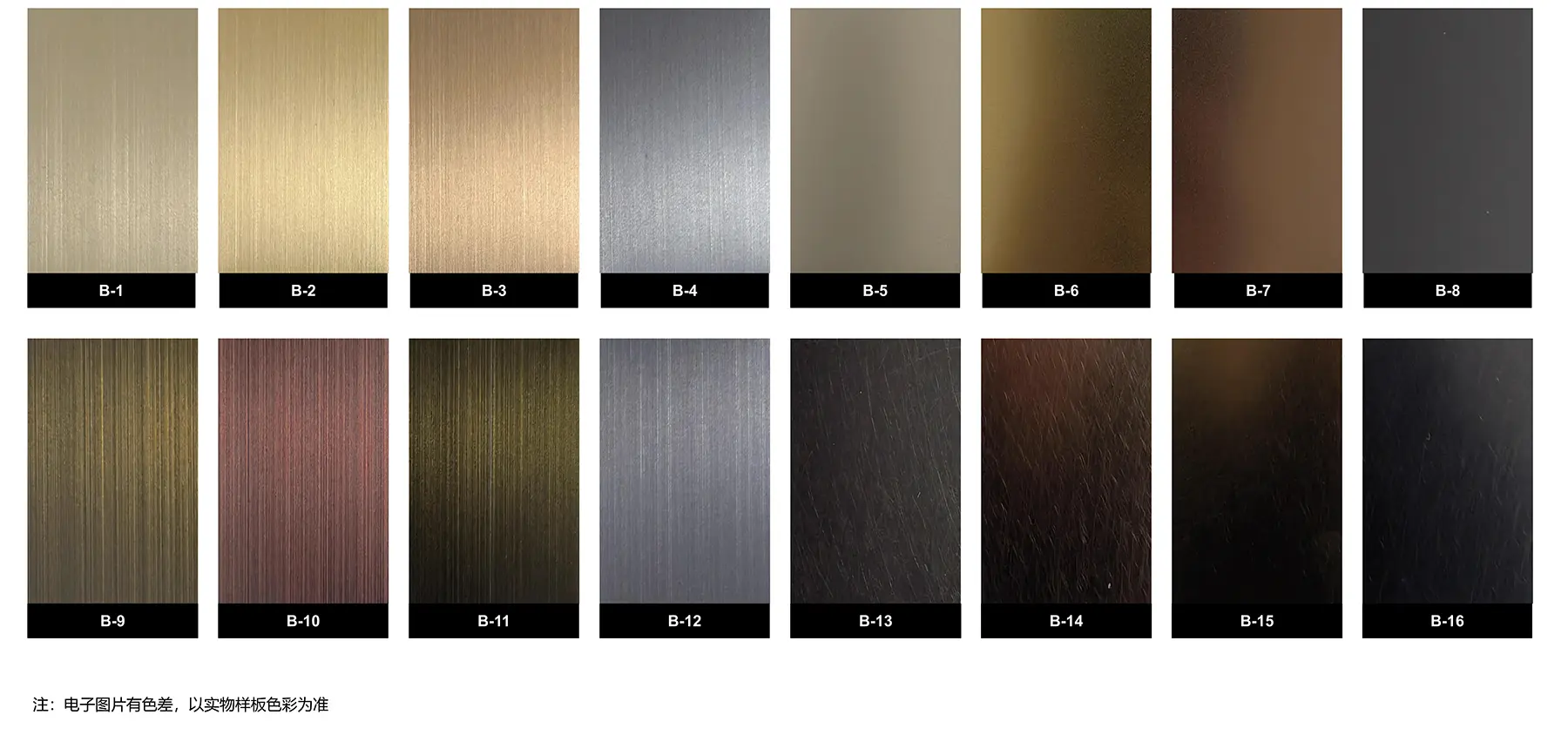

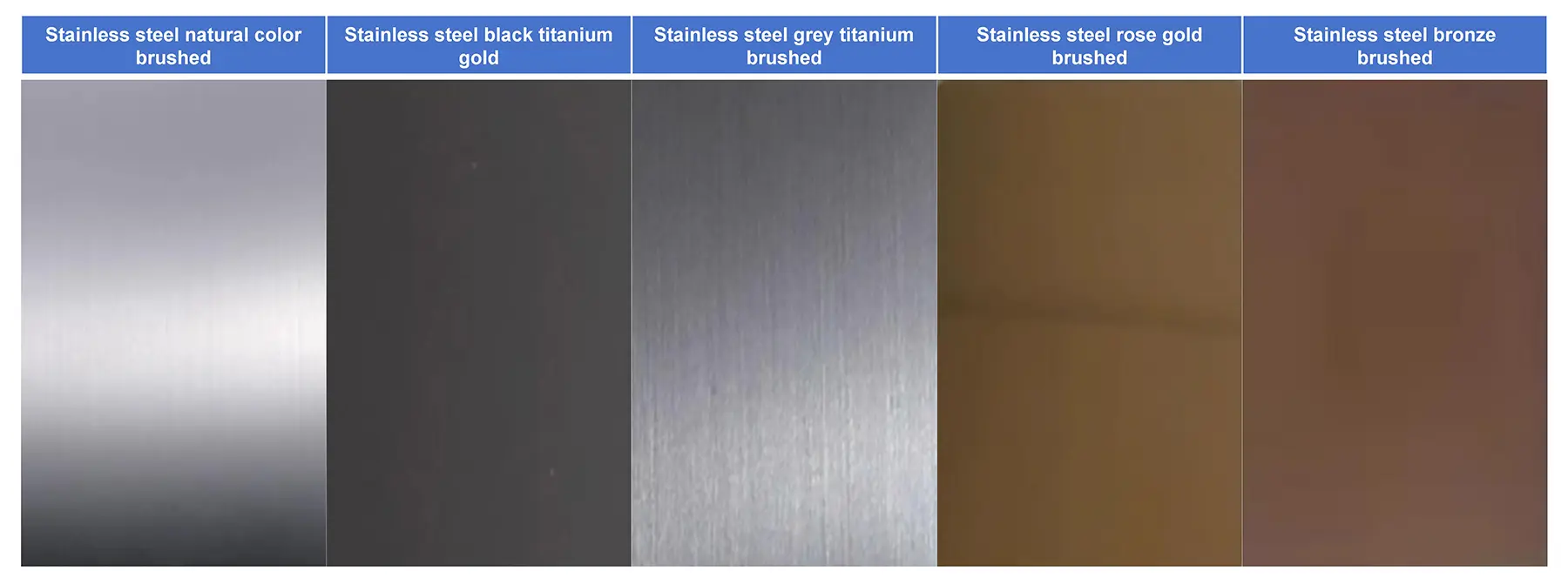

| Colors |  |

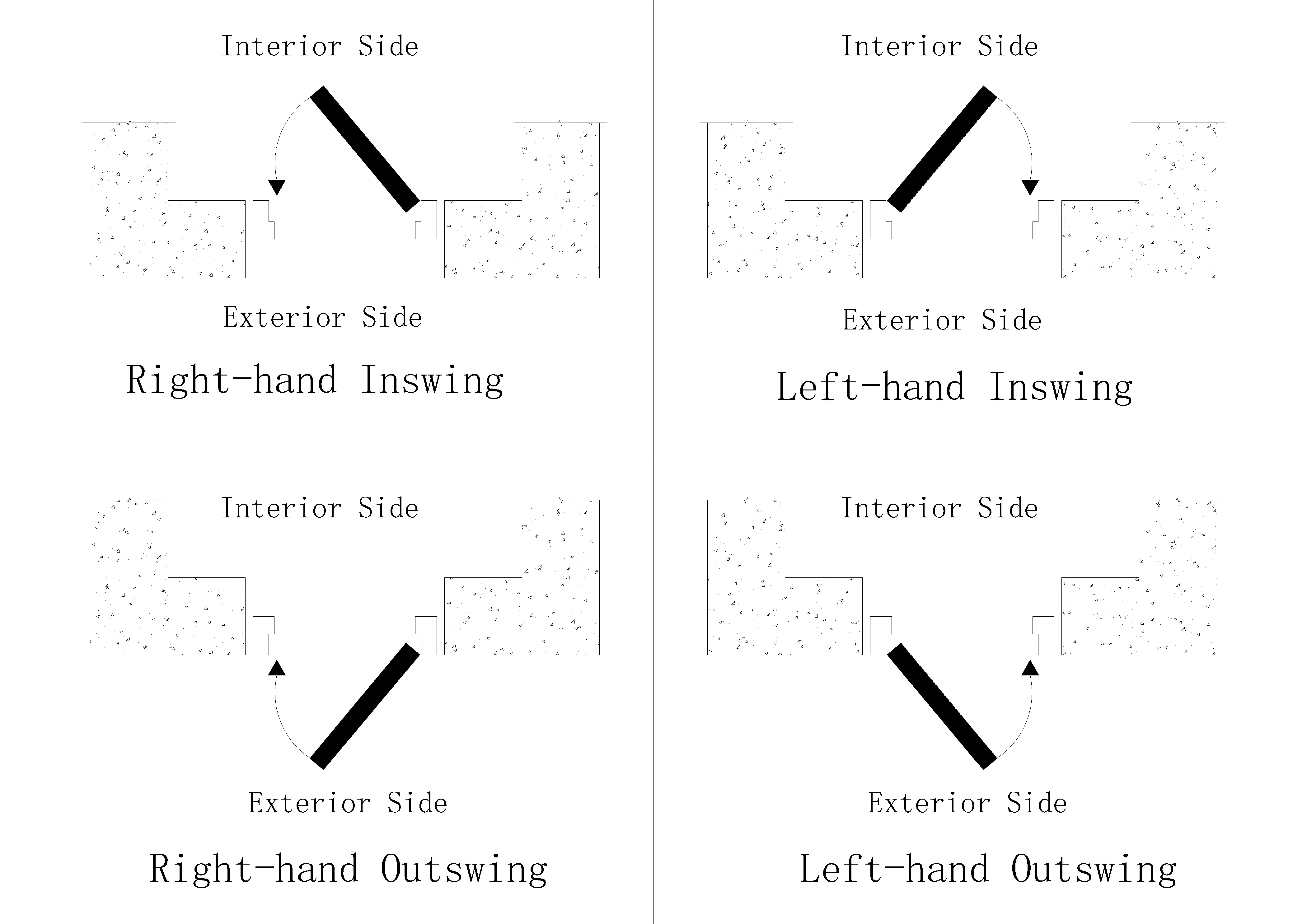

| Opening Method |  |
| Accessory Configuration | Hinge |
| Fire Rated Lock | |
| Door Closer | |
| Bolt |
All parameters are customized
